Scope of application

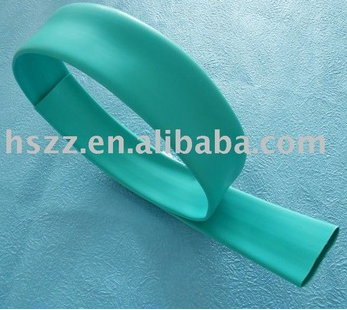

MPG01 series product is widley applied in 0.6/kV power distribution system for insulation protection of copper (alumnium) busbars, insulation protection of bare conductor, anti-rusting of pipeline metal.
Product features
High flame retardancy: oxygen index is higher than 30
Fine heat resistance: stable under temperature below 125℃
Excellent low-temperature property: no crisp and no crack under-55℃;
Fine flexibility: for complex busbar shape, convenient for installation
Easy for split-phase: multiple colors
Fine insulation property: shorten distance of alternate and over the ground
High safety: prevent short circuit
Main performance
| Item |
Test condition |
Typical test data |
|
tensile strength |
ASTM D 638 |
14 Mpa |
|
elongation at break |
ASTM D 638 |
400% |
|
volume resistivity |
IEC 93 |
2 ×1014 Ω.cm |
|
water absorption |
ISO 62 |
< 0.5% |
|
after aging tensile strength |
158°C for 7 days of aging |
15 Mpa |
|
after aging elongation at break |
|
410% |
|
disruptive strength |
IEC 243 |
23 kV/mm |
|
power-frequency withstand strength |
|
4.5kV 60s no arc-over, no breakdown |
|
eccentricity |
|
10% |
|
longitudinal shrinkage ratio |
200°C for 3 minutes of shrinkage |
-0.5% |
MPG01 series specification
| Specification |
Before shrinkage(mm) |
After shrinkage(mm) |
Length of the packing |
|
|
inner diameter |
Wall thickness |
|||
|
Φ20 |
21.0±0.5 |
9.7±0.3 |
0.60±0.05 |
100 |
|
Φ22 |
22.8±0.8 |
10.0±1.0 |
0.60±0.05 |
25 |
|
Φ25 |
25.8±0.8 |
11.0±1.0 |
0.65±0.05 |
25 |
|
Φ28 |
28.8±0.8 |
13.0±1.0 |
0.65±0.05 |
25 |
|
Φ30 |
30.8±0.8 |
14.0±1.0 |
0.70±0.05 |
25 |
|
Φ35 |
35.0±0.8 |
16.0±1.0 |
0.70±0.05 |
25 |
|
Φ40 |
41.0±1.0 |
19.0±1.0 |
0.75±0.05 |
25 |
|
Φ50 |
51.0±1.0 |
24.0±1.0 |
0.80±0.05 |
25 |
|
Φ60 |
61.0±1.0 |
29.0±1.0 |
0.80±0.05 |
25 |
|
Φ70 |
71.0±1.0 |
33.0±2.0 |
0.85±0.05 |
25 |
|
Φ80 |
81.0±1.0 |
37.0±2.0 |
0.90±0.05 |
25 |
|
Φ90 |
91.0±1.0 |
43.0±2.0 |
0.95±0.05 |
25 |
|
Φ100 |
102±2.0 |
48.0±2.0 |
1.00±0.05 |
25 |
|
Φ120 |
122±2.0 |
58.0±2.0 |
1.10±0.05 |
25 |
|
Φ150 |
152±2.0 |
73.0±2.0 |
1.10±0.05 |
25 |
|

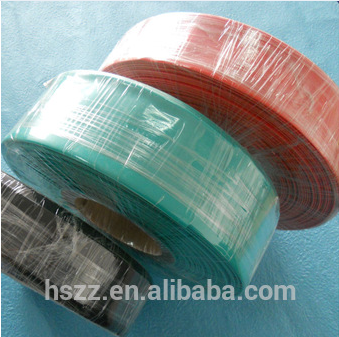

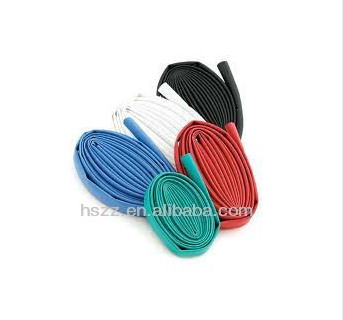

Standard color: black, red, yellow, green, blue |
||||
